CG16K - Capsule Gauge 40 Torr, D35632000

Mechanical Dial Gauge

Portable gauging offers the opportunity to easily take spot measurement checks.

Thanks to it being mains power independent, the Edwards P3 handheld all-in-one measuring system is the essential device for:

Also available is the accessory pack, which not only gives you a case in which to transport the gauge, avoiding damage in transit, but also some dedicated PC software and mains cable to enable longer term measurement tracking and logging, past the standard onboard datalogging. This can enable pressure rise leak testing on large/underground systems where standard leak checking is not viable.

CG16k Capsule Gauge

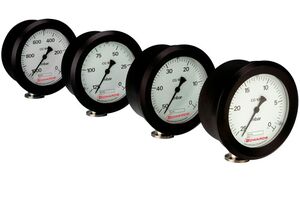

Edwards CG16K capsule dial gauges are barometrically compensated with NW flange fittings. Designed to cover the range of 0-1040 mbar, these robust gauges provide accurate, repeatable performance even at low pressures making them equally suited for non-corrosive process plant or for laboratory applications. Fitting is simple: the gauges can be mounted direct or panel mounted using the kit supplied.

Features and Benefits

• Reading independent of gas type.
• Accurate to ±2% of full scale.
• Barometrically independent.
• Pipeline or panel mounting.
• Easy to read linear scale.
