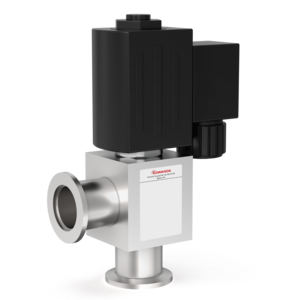

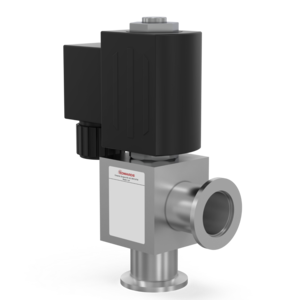

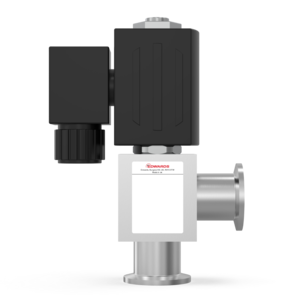

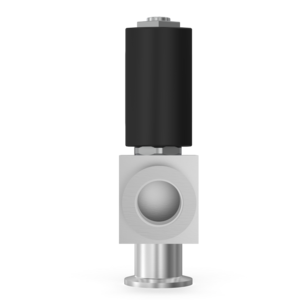

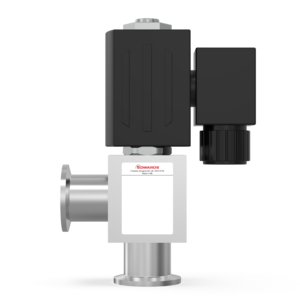

Angle Valve - LCPV25EKA - P-Line Valve O-Ring sealed 24V AC/DC Al, C41790200
Part Number: C41790200
EUR 624.00
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number | Connection Inlet Flange |
|---|---|---|
| C41780200 | DN 16 ISO-KF (NW16) | |
| C41790200 | DN 25 ISO-KF (NW25) |
LCPVEKA ISO-KF - Isolation Valve
Edwards aluminum LCPVEK valves are designed for vacuum applications that need a compact, simple, solenoid operation valve to control gas flow. These economical valves are ideal for a number of duties ranging from simple laboratory pump isolation to OEM vacuum system integration and design. Their versatility makes them effective both in vacuum pipelines and in chamber admittance applications.
Careful design of the solenoid power control and vacuum isolation components delivers efficient magnetic actuation with optimum vacuum performance at an affordable price.
Features and Benefits
- Economical design
- Electrical actuation
- Low power requirements
- Electronic boost power supply
- Efficient magnetic design
General Product Information
| Recommended Pressure Range Min | 1.000 × 10⁻⁴ |
| Recommended Pressure Range Max | 1.000 × 10⁵ |
| Connection Inlet Flange | DN 25 ISO-KF (NW25) |
| Weight | 0.840 |
| Valve Actuation Method | Solenoid / Electromagnetic |
| Connection vacuum outlet flange | DN 25 ISO-KF (NW25) |
| Leak Rate | 1.000 × 10⁻⁷ |
| Power Supply Voltage | AC/DC 24V |
| IP Rating | IP67 |
| ProductCertification | CE |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. For valves in particular we recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Material of Construction
| Material Body | Aluminum |
| Material Abbreviation | Al |
| Material Seal | FKM |
Operation Conditions - Limitations
| Pressure Absolute Inlet Continous Max | 1.000 × 10⁵ |
| Altitude Max | 4000.00 |
| Reliability MTTF (mean time to failure) | 5.000 × 10⁵ |
Environmental Conditions
| Temperature Ambient Operation Max | 318.15 |
| Temperature Ambient Operation Min | 263.15 |
Performance Data
| Pressure Differential Max | 100000.00 |
| Power consumption Max String | Open 95 W for 60 ms approximately 2.5-4 W to hold. |
| Power Total Rated | 72.00 |
- C41780851 - Instructions.pdf - Czech - Instructions
- C41751880 - Instructions.pdf - English - Instructions
- C41780880 - Instructions.pdf - English - Instructions
- P60071600 - Pump Module.pdf - English - Instructions
- 3601-0824-01-LCPVEK-Datasheet.pdf - English - Technical Data
- C41751883 - Instructions.pdf - French - Instructions
- C41780883 - Instructions.pdf - French - Instructions
- P60071683 - Pump Module.pdf - French - Instructions
- C41751882 - Instructions.pdf - German - Instructions
- C41780882 - Instructions.pdf - German - Instructions
- P60071682 - Pump Module.pdf - German - Instructions
- C41751884 - Instructions.pdf - Italian - Instructions
- C41780884 - Instructions.pdf - Italian - Instructions
- P60071684 - Pump Module.pdf - Italian - Instructions
- C41751852 - Instructions.pdf - Polish - Instructions
- C41780857 - Instructions.pdf - Russian - Instructions
