Specifications

Connection Inlet Flange 2" BSPP (or G 2") Female 2" NPT Female
Connection vacuum outlet flange 2" BSPP (or G 2") Female 2" NPT Female
Cooling Method Air Cooling (forced - fan)
Pressure Ultimate 14000.00
Power Supply Voltage Bareshaft without motor
Power Total Rated 7500.00

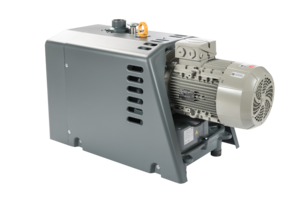

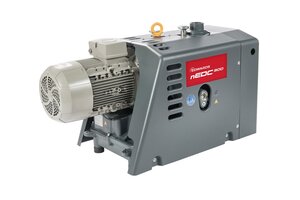

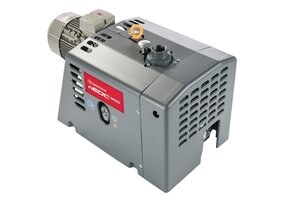

nEDC300 - Dry Claw Pump, Bareshaft without motor, IE3

Part Number: A50877022

Variant

Explore the range of variants given below to compare the product

Short Description Part Number Power Supply Voltage Power Supply Frequency Power Total Rated Pumping Speed Air Nitrogen 60Hz Pumping Speed Air Nitrogen 50Hz Pumping Speed Air Nitrogen (@50Hz or max @default setting)
A50877020 3Ph 200/230V 50Hz IEC 50 Hz 6200.00 - 0.082 0.082
A50877021 Bareshaft without motor 50 Hz 6200.00 - 0.082 0.082
A50877022 Bareshaft without motor 60 Hz 7500.00 0.096 - 0.096
A50877320 3Ph 500/575V 50/60Hz IEC-UL/cUL 50 Hz 60 Hz 6200.00 0.096 - 0.096
A50877620 3Ph 230/460V 60Hz UL/cUL 60 Hz 7500.00 0.096 - 0.096

Dry Claw Pumps

Dry claw vacuum pumps are positive displacement pumps that use two claw-shaped rotors to trap and compress gas to create a vacuum. They are oil-free, low maintenance, and can operate continuously without experiencing wear and tear. They are commonly used in industrial applications that require reliable and efficient vacuum systems.

nEDC Dry Claw

Edwards range of nEDC dry claw pumps features an innovative design which creates a new benchmark in the claw pump market. The simplicity, robustness, efficiency and contaminant handling capability of these pumps make them the smart choice for your application. Built to the exacting standards and quality demanded by our customers, Edwards dry claw pump provides you with a trouble-free and cost-effective solution to meet your needs.

nEDC300

Harsh industrial applications require a pump that can withstand rough operational conditions.

Features and Benefits

  • Enhanced performance - Modular design ensures efficiency during the operational lifecycle. You are ensured of improved performance for your process due to higher pumping speeds.
  • Reliable and long-lasting - Lower internal temperatures increase lip seal life and prevents oil leaks.
  • Lower noise levels - Re-designed and in-house developed silencer significantly reduces noise levels.
  • Easy to maintain - n addition to Edwards field service, the nEDC claw pump can be easily cleaned on-site and re-started by customers without the need for specialized tools.

General Product Information

Connection Inlet Flange 2" BSPP (or G 2") Female
2" NPT Female
Weight 304.00
Connection vacuum outlet flange 2" BSPP (or G 2") Female
2" NPT Female
Power Supply Phase 3-Ph
Power Supply Voltage Bareshaft without motor
Dimension Length 1.04
IP Rating IP54
Power Supply Frequency 60 Hz
Dimension Height 0.501
Dimension Width 0.567
Connector Electrical Power Hard wiring (in electrical box of pump / mains)
Noise / Sound Level 72.00 db(A)
72.00 db(A)
Cooling Method Air Cooling (forced - fan)
Motor Efficiency Class IE3
Connection Inlet / Outlet Flange 2" BSPP (or G 2") Female / 2" BSPP (or G 2") Female
Dimension Comments The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models.
connectionPurgeGasBallastVentConnector 1/4" BSPT Male
connectionShaftsealPurge Rigid Tube 1/4" outer diameter

Performance Data

Power Total Rated 7500.00
Power Total Rated @60Hz 7.50
Power Total Rated @50Hz 6.20
Pumping Speed Air Nitrogen 60Hz 0.096
Displacement @50Hz Max 0.082
Pressure Ultimate 14000.00
Displacement @60Hz Max 0.096
Nominal rotational speed 68.33
Pumping Speed Air Nitrogen (@50Hz or max @default setting) 0.096

Operation Conditions - Limitations

Pressure Absolute Inlet Continous Max 1.013 × 10⁵
Altitude Max 1000.00
Oil Capacity Max 1.500 × 10⁻³
Pressure Absolute Outlet Continous Max 1.200 × 10⁵

Environmental Conditions

Temperature Ambient Operation Max 313.15
Temperature Ambient Operation Min 273.15

Classification

Classification Product Pressure Range Rough Vacuum: 1000 mbar - 1 mbar
Classification High / Medium / Rough Vacuum pump Rough Vacuum Pump
Classification Dry or Wet Pump Dry
Classification Vacuum Pump Technology Dry Claw Pump

Material of Construction

Material Rotor Stainless Steel 1.4021 / X20Cr13
Material Stator Cast Iron GGG40
