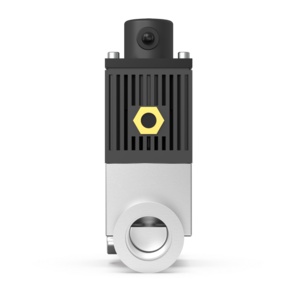

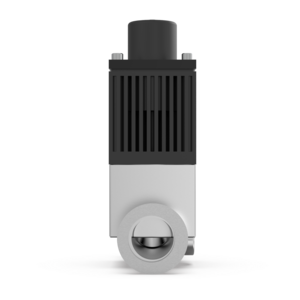

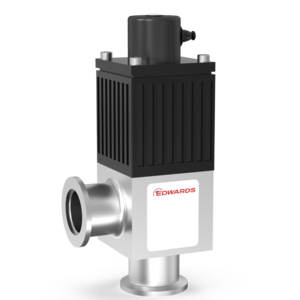

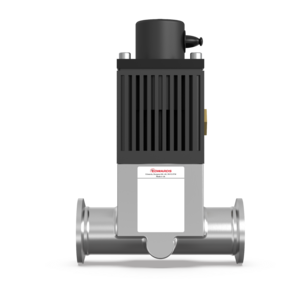

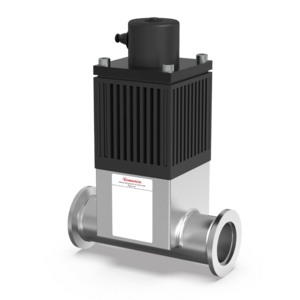

Durchgangsabsperrventile - IPV25PKA - pneumatisch, NW25, Doppel-Mikroschalter 1/8" BSP, C41626000

Part Number: C41626000
639,00  EUR

Variant

Explore the range of variants given below to compare the product

Short Description Part Number Material Body Connection Inlet Flange
C41419000 - -
C41419200 - -
C41601000 DN 16 ISO-KF (NW16) Aluminum
C41602000 DN 16 ISO-KF (NW16) Stainless Steel 1.4404 / 316 L / X2 CrNiMo 17 13 2
C41603000 DN 16 ISO-KF (NW16) Aluminum
C41621000 DN 25 ISO-KF (NW25) Aluminum
C41622000 DN 25 ISO-KF (NW25) Stainless Steel 1.4301 / 304 / X5 CrNi 18 10
C41623000 DN 25 ISO-KF (NW25) Aluminum
C41626000 Aluminum -
C41641000 DN 40 ISO-KF (NW40) Aluminum
C41642000 DN 40 ISO-KF (NW40) Stainless Steel 1.4301 / 304 / X5 CrNi 18 10
C41643000 DN 40 ISO-KF (NW40) Aluminum
C41646000 Aluminum -

IPVPK ISO-KF – Inline-Absperrventil

The Edwards range of in-line single acting cylinder, spring return pipeline valves are designed for high speed actuation from standard pneumatic lines, and are offered in sizes NW16, 25, 40 and 50. They are available with aluminium or stainless steel bodies with either O-ring (shaft seal, aluminium only) or bellows sealed.



The valves are designed for long life duties, with a MTTF of 5,000,000 cycles for both bellows and O-ring sealed versions providing long intervals between services.

Features and Benefits

  • Verbesserte Lebensdauer, mittlere Zeit bis zum Ausfall jetzt 5.000.000 Zyklen
  • Elektrische und optische Anzeige des Ventilstatus
  • Schnell wirkend - 20 ms bis zum Schließen (PV16)
  • Erhältlich in Aluminium oder Edelstahl
  • Wahlweise Balg- oder O-Ring-Wellendichtung mit Aluminiumgehäuse

Environmental Conditions

Temperatur Umgebung im Betrieb Max 318.15
Temperatur Umgebung im Betrieb Min 278.15
Temperatur Umgebung Lagerung Min 278.15
Temperatur Umgebung Lagerung Max 318.15

Material of Construction

Material Gehäuse Aluminium
Material Abbreviation Al

General Product Information

Dimension Comments The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. For valves in particular we recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models.
Product Title Part Number Price Add to cart
Spares Kit Seals PV25MK/PVPKS, C41301810 C41301810 -
Spares Kit Valve Seals PV25PK, C41311800 C41311800 -
